WONDERY Semi-Automatic Radiator Core Builder Machine 1500kg

Name: WONDERY Semi-Automatic Radiator Core Builder Machine 1500kg
Brand: Wuxi Wondery Industry Equipment Co., Ltd
Price: 25.00 USD
Availability: InStock

الاسم التجاري:	WONDERY
مو:	1
السعر:	$15,000-35,000

معلومات تفصيلية

وصف المنتج

معلومات تفصيلية

مكان المنشأ:

جيانغسو ، الصين

وزن:

1500 كجم

المكونات الأساسية:

PLC ، المحرك ، المحمل ، علبة التروس ، المحرك ، وعاء الضغط ، العتاد ، المضخة

الضغط الهوائي:

0.6MPA

مسافة الرأس:

300-800mm

طول الرأس:

300-680mm

عرض الزعنفة:

16 ، 18 ، 20 ، 24 ، 26 ، 32mm

ارتفاع الزعنفة:

8 مم

سمك الأنبوب المسطح:

2mm

عرض أنبوب مسطح:

16,22,26 ملم

مسافة أنبوب مسطح:

10mm

طبقات الأنبوب المسطح:

1-2 طبقة

القوة الكلية:

0.5kw

تجميع الوقت:

3.5 دقيقة لكل قلب

أبعاد الآلة:

2200mm × 2050mm × 1300mm (L ، W ، H)

المكونات الكهربائية:

شنايدر براند

إبراز:

semi-automatic radiator core builder,1500kg radiator fin machine,radiator core machine with warranty

1500kg radiator fin machine

radiator core machine with warranty

وصف المنتج

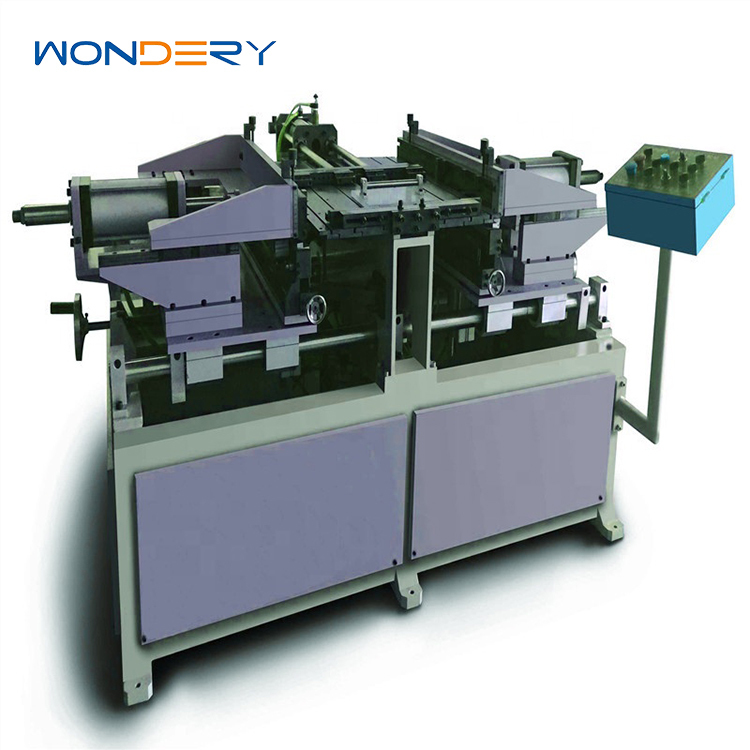

Wondery Hot Selling Semi-automatic Aluminum Radiators Core Builder Machine

Semi-automatic Aluminum Radiators Core Builder Machine From WONDERY WONDERY Semi-Automatic Radiator Core Builder Machine 1500kg 0

Product Application

The radiator core builder machine is used for assembling auto radiator cores. The core builder machine has the advantages of stable and reliable working performance, easy operation, low noise, accurate positioning of flat tube center, and even distribution of fins. The assembled core has a high assembling accuracy and a good appearance, which ensures a better brazing effect in the brazing furnace.

Technical Specifications

Parameters of Cores to be Assembled
Header-to-header distance	300-800 mm; header length: 300-680mm
Fin width	16, 18, 20, 24, 26, 32mm
Fin height	8mm (fixed value)
Flat tube thickness	2mm
Flat tube width	16, 22, 26mm
Header width	Decided by the customer

Machine Parameters
Radiator core assembled per time	1 piece
Center-to-center distance for flat tube	10mm (fixed value)
Flat tube layer	1-2 layer
Total power	About 0.5kw
Assembling time per core	About 3.5 minutes per core
Equipment weight	1.5T
Equipment dimensions (L×W×H)	2200 mm × 2050 mm × 1300 mm

Key Advantages

The flat tubes are distributed through a servo tube distribution device. The overall comb teeth structure ensures flat tube positioning accuracy.
Designed with 2-hand push buttons for safe operation.
Easy to operate, adjust, and replace tooling.
Left and right push mechanism and clamping mechanism are controlled by hydraulic cylinders.
Can be equipped with header flaring mechanism.

Detailed Images

Tube Distribution Silo

The radiator core builder can be equipped with a tube distribution silo to improve operation efficiency.

Header Mold

We supply radiator core builders with 1-5 rows. The header mold is customized based on requirements. Flaring function is available.

Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial machines. Currently the company mainly supplies equipment for the automobile industry, household air conditioner industry, engineering vehicle industry, power generation plant industry, train industry, and ship industry.

Our main products include:

Radiator making machines
Aluminum fin machine
Aluminum radiator core builder machine
Aluminum radiator plastic tank clinching machine
Aluminum radiator brazing furnace
Aluminum header pipe punching machine
Aluminum flat tube straightening and cutting machine
High speed fin press machine
Aluminum/copper pipe straightening and cutting machine
Tube expander machine
Automatic bending machine
Progressive fin die
Metal punching die

Established in 2008, we have extensive experience in development, design, quality control, and after-sales service. We provide technical consultation, installation, test-running, technical training, and maintenance services. We can also design non-standard products according to customer requirements.

Frequently Asked Questions

1. What is the power supply of the heat exchanger making machines?

The power supply is determined by the customer's requirements. We can adjust the power supply (voltage and phase) through a transformer or use the customer's voltage directly to ensure the machine is ready for use at the end user's site.

2. What information should the customer provide to get an accurate quotation?

Customers should provide technical requirements, drawings, pictures, industrial voltage, planned output, and other relevant specifications.

3. What is the payment term?

Payment terms are 40% down payment and 60% before delivery (T/T mode).

4. What is the delivery time?

Delivery time is 30-60 days after receipt of down payment.
